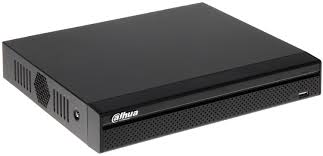

Dahua XVR5108HS-X
XVR5108/16HS-X
8/16 Channel Penta-brid 1080P Compact 1U Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12/24 channels IP camera inputs, each channel up to 6MP; Max 48/96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12/24 channels IP camera inputs, each channel up to 6MP; Max 48/96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System
Product Description
XVR5108/16HS-X
8/16 Channel Penta-brid 1080P Compact 1U Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12/24 channels IP camera inputs, each channel up to 6MP; Max 48/96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12/24 channels IP camera inputs, each channel up to 6MP; Max 48/96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System
System
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
Display
| Interface | 1 HDMI ,1 VGA |
| Resolution | HDMI: 8CH: 1920×1080, 1280×1024, 1280×720 16CH: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Multi-screen Display | When IP extension mode not enabled: 8CH: 1/4/8/9 16CH: 1/4/8/9/16 When IP extension mode enabled: 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Audio & Video
| Interface | 1 HDMI ,1 VGA |
| Resolution | HDMI: 8CH: 1920×1080, 1280×1024, 1280×720 16CH: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
| Multi-screen Display | When IP extension mode not enabled: 8CH: 1/4/8/9 16CH: 1/4/8/9/16 When IP extension mode enabled: 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Download Dahua XVR5108HS-X Datasheet
Download Dahua XVR5108HS-X User Manual
