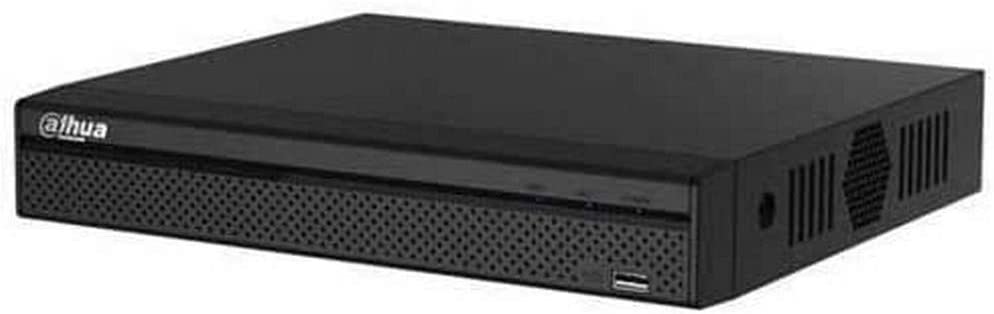

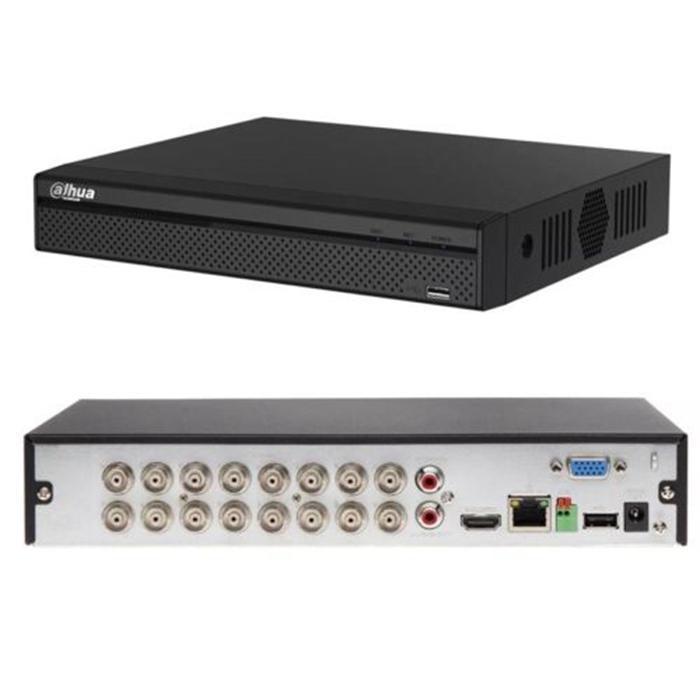

Dahua XVR5116HS-X
8/16 Channel Penta-brid Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12/24 channels IP camera inputs, each channel up to 6MP; Max 48/96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12/24 channels IP camera inputs, each channel up to 6MP; Max 48/96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System
Product Description
8/16 Channel Penta-brid Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12/24 channels IP camera inputs, each channel up to 6MP; Max 48/96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 12/24 channels IP camera inputs, each channel up to 6MP; Max 48/96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System
System
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
Display
| Interface | 1 HDMI ,1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720 |
| Multi-screen Display | When IP extension mode not enabled: 8CH: 1/4/8/9 16CH: 1/4/8/9/16 When IP extension mode enabled: 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Audio & video
| Analog Camera Input | 8/16 Channel, BNC |
| HDCVI Camera | 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera | 4MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera | 4MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 8+4/16+8 Channel, each channel up to 6MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
Download Dahua XVR5116HS-X Datasheet
Download Dahua XVR5116HS-X User Manual
