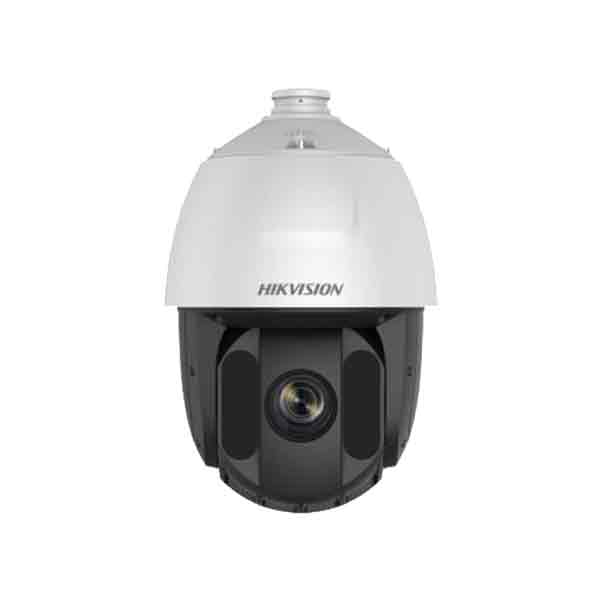

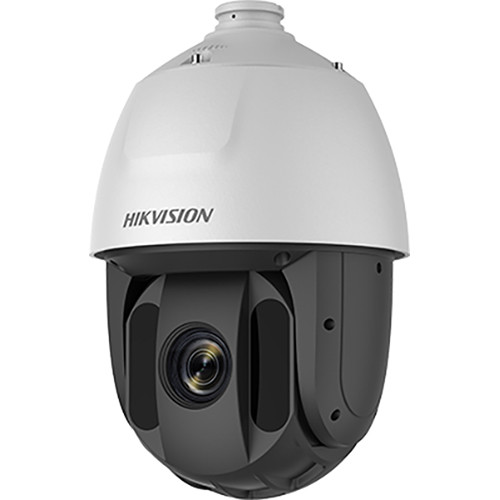

Hikvision DS-2DE5225IW-AE PTZ IP Camera

5-inch 2 MP IR Network Speed Dome

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 25x optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 150m IR range ensures safety at night
  • Water and dust resistant (IP66).

৳ 36,000.00

Compare

Product Description

5-inch 2 MP IR Network Speed Dome

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 25x optical zoom allows for closer viewing of subjects in expansive areas
  • Up to 150m IR range ensures safety at night
  • Water and dust resistant (IP66).
Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Slow Shutter yes
Focus semi-auto, manual, auto
Day & Night ICR
Day/Night Switch day, night, auto, scheduled-switch
BLC yes
WDR 120 dB WDR
HLC yes
3D DNR yes
Defog yes
EIS yes
Regional Exposure yes
Regional Focus yes
Image Settings saturation, brightness, contrast, sharpness
White Balance auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom 16 ×
Optical Zoom 25 ×
Privacy Mask up to 24 masks, polygon region, mosaic mask, mask color configurable
SNR 52dB
Lens
Focal Length 4.8 mm to 120 mm, 25× Optical
Zoom Speed approx. 3.6 s
FOV Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)
Aperture F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90°(auto flip)
Pan Speed pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory yes
Park Action preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning yes
PTZ Status Display yes
Preset Freezing yes
Scheduled Task preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 1920 × 1080
Stream Type main stream, sub-stream, third stream
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50Hz: 25fps (704 × 576, 640 × 480, 35 2× 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type baseline profile, main profile, high profile

H.265 Type main profile
H.264+ yes
H.265+ yes
SVC yes
ROI dynamic face tracking, fixed region, main stream, sub-stream and third stream respectively support eight fixed areas
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit rate MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling Rate MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering yes
Smart Features
Face Capture yes
Basic Event audio exception, motion detection, exception
Smart Event intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Smart Record ANR, Dual-VCA
Alarm Linkage preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP
Network
Network Storage NAS (NFS, SMB/ CIFS), ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S, Profile G, Profile T), ISUP
Simultaneous Live View 20
User/Host 32
Smooth Streaming yes
Security Measures Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Client iVMS-4200
Web Browser IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input 2 alarm inputs
Alarm Output 1 alarm output
Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%,
Audio Output 1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance 150 m
General
Power 24 VAC, Hi-PoE
Power Consumption and Current Max. 30 W, including max. 10 W for IR
Operating Conditions -30°C to 65°C (-22°F to 149°F)
Reset yes
Material ADC 12, PC, PC+10% GF
Dimensions Φ 208 mm × 345 mm (Φ 8.19" × 13.58")
Weight Approx. 3.3 kg (7.28 lb)
Approval
Protection IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
