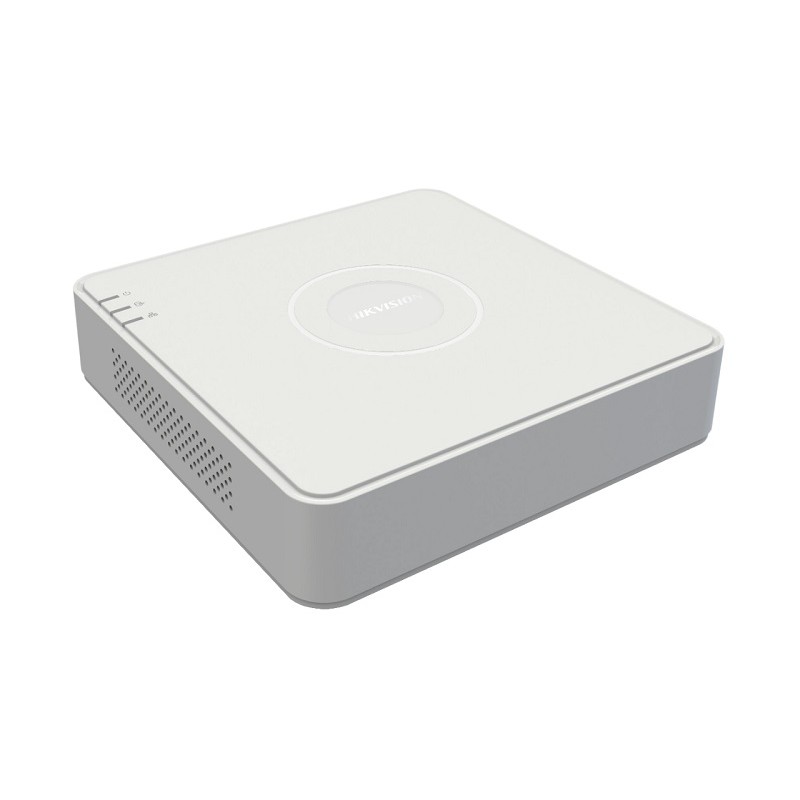

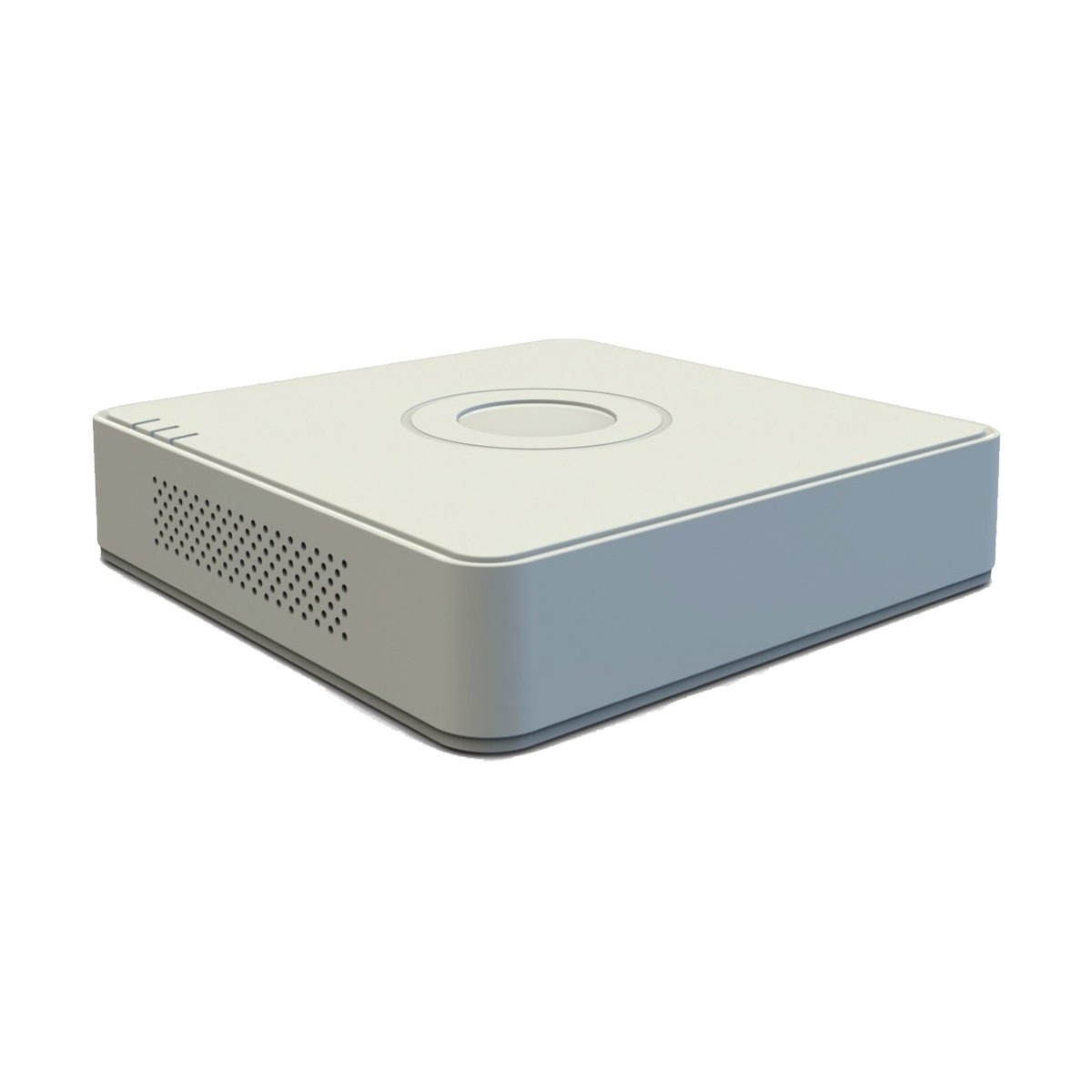

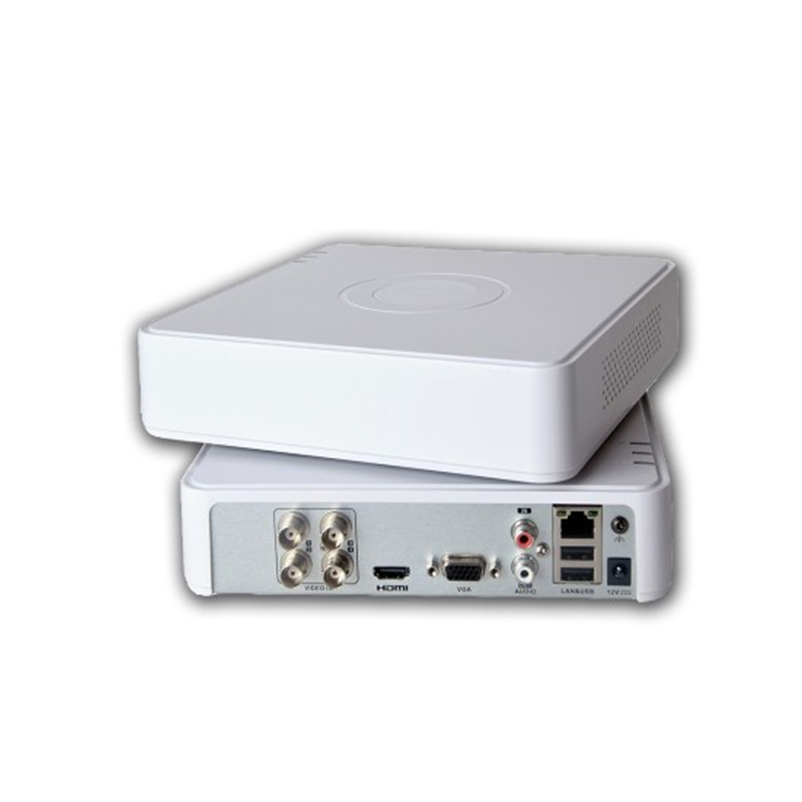

Hikvision DS-7104HQHI-K1

4-ch 1080p Mini 1U H.265 DVR

  • 4 channels and 1 HDD mini size DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 6 network cameras can be connected

৳ 3,900.00

Compare

Product Description

4-ch 1080p Mini 1U H.265 DVR

  • 4 channels and 1 HDD mini size DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 6 network cameras can be connected

System

Model DS-7104HQHI-K1 DS-7108HQHI-K1 DS-7116HQHI-K1
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP [email protected]; 1080p lite/720p/WD1/4CIF/VGA/[email protected] (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/[email protected] For 1080p stream access: 1080p/[email protected]; VGA/WD1/4CIF/[email protected] (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/[email protected] (P)/30fps (N) When 1080p Lite mode is enabled: 4 MP lite/3 [email protected]; 1080p lite/720p lite/VGA/WD1/4CIF/[email protected] (P)/30fps (N)
Sub-stream: WD1/[email protected]; [email protected] (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps

Video & Audio

IP video input 1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps 2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 4-ch 8-ch 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 ×

1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch 8-ch 16-ch

Network

Total bandwidth 72 Mbps 96 Mbps 128 Mbps
Incoming bandwidth (Enhanced IP mode) 24 Mbps 48 Mbps 96 Mbps
Remote connection 32 64 128
Network protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

General

Power supply 12 VDC, 1.5 A 12 VDC, 1.33 A 12 VDC, 1.9 A
Consumption (without HDD) ≤ 8 W ≤ 12 W ≤ 15 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
Weight (without HDD) ≤ 1 kg (2.2 lb)

Download Hikvision DS-7104HQHI-K1 DVR Datasheet

Download Hikvision DS-7104HQHI-K1 DVR  guide
