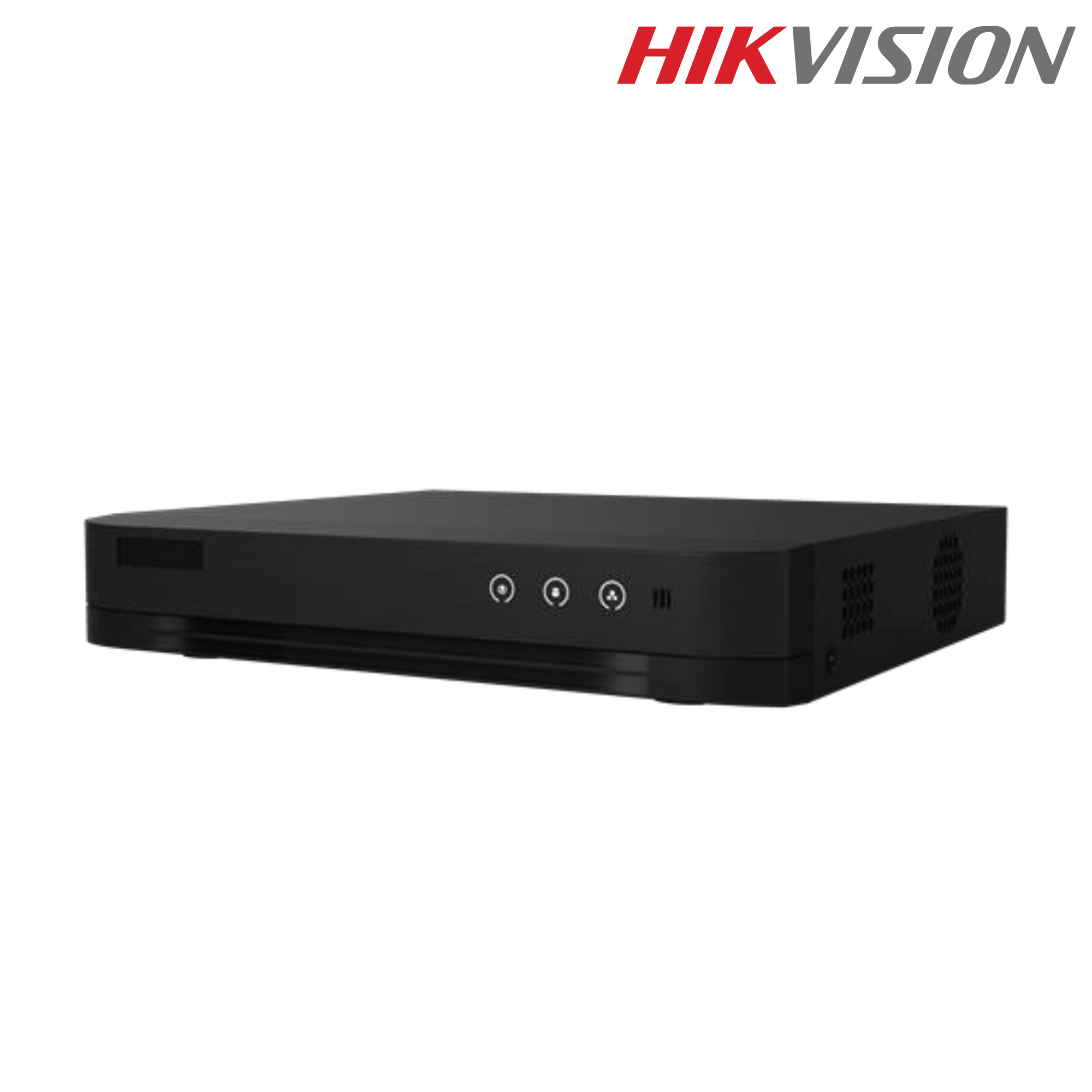

Hikvision DS-7208HUHI-K1

8-ch 5 MP 1U H.265 DVR

  • 8 channels and 1 HDD 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 16 network cameras can be connected

৳ 10,500.00

Compare

Product Description

8-ch 5 MP 1U H.265 DVR

  • 8 channels and 1 HDD 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 16 network cameras can be connected

System

Model DS-7204HUHI-K1 DS-7208HUHI-K1
Perimeter Protection¹
Line Crossing Detection/ Intrusion Detection 2-ch Enhanced VCA mode on: 4-ch 2-ch Enhanced VCA mode on: 8-ch
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution When 8 MP Lite mode is not enabled: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF When 8 MP Lite mode is enabled: 8 MP Lite/5 MP/4 MP/3MP/1080P/720P/WD1/4CIF/VGA/CIF
Frame rate Main stream: When 8 MP Lite mode is not enabled: 8 [email protected] fps/5 [email protected] fps/[email protected] fps/4 [email protected] fps/3 [email protected] fps 1080p/720p/WD1/4CIF/VGA/[email protected] fps (P)/30 fps (N) *: 8 [email protected] fps is only available for channel 1 of DS-7204HUHI-K1. When 8 MP Lite mode is enabled: 8 MP Lite/5 [email protected] fps/4 MP/3 MP/1080P/720P/WD1/4CIF/VGA/[email protected] fps *: 8 MP Lite is only available for DS-7204HUHI-K1.
Sub-stream: WD1/4CIF/[email protected] (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps

Video & Audio

IP video input2 2-ch (up to 6-ch) Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps 4-ch (up to 12-ch) Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 4-ch 8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×

768/60Hz 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable 8-ch via coaxial cable
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch 8-ch

Network

Total bandwidth 96 Mbps 128 Mbps
Incoming bandwidth (Enhanced IP mode) Up to 32 Mbps Up to 64 Mbps
Remote connection 32 64
Network protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

General

Power supply 12 VDC, 1.5 A 12 VDC, 3.33 A
Consumption (without HDD) ≤ 10 W ≤ 20 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimension (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight (without HDD) ≤ 1.16 kg (2.6 lb) ≤ 2 kg (4.4 lb)
