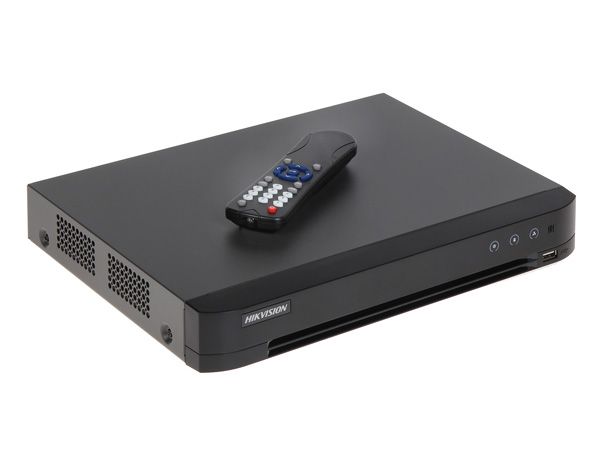

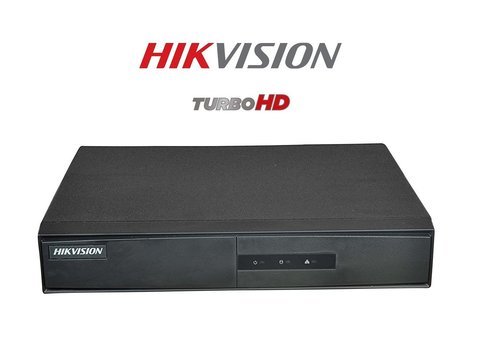

Hikvision DS-7216HQHI-K2

16-ch 1080p 1U H.265 DVR

  • 16 channels and 2 HDDs 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 24 network cameras can be connected

৳ 14,000.00

Compare

Product Description

16-ch 1080p 1U H.265 DVR

  • 16 channels and 2 HDDs 1U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 24 network cameras can be connected

Video & Audio

Model DS-7224HQHI-K2 DS-7232HQHI-K2
Video/Audio input Video compression H.265+/H.265/H.264+/H.264
Analog video input 24-ch 32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Note: The 3 MP signal input is only available for channel 1/2/3/4.
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
IP video input 2-ch
Up to 4 MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression G.711u
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI/VGA output VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP [email protected]; 1080p lite/720p/WD1/4CIF/VGA/[email protected] (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/[email protected] For 1080p stream access: 1080p/[email protected]; VGA/WD1/4CIF/[email protected] (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/[email protected] (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 [email protected]; 1080p lite/720p lite/VGA/WD1/4CIF/[email protected] (P)/30fps (N)
Sub-stream: WD1/[email protected]; [email protected] (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 16-ch

Network

Network management Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

General

General Power supply 12 VDC
Consumption (without HDD) ≤ 55 W ≤ 65 W
Working temperature -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Working humidity 10% to 90%
Dimensions (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight (without HDD) ≤ 2 kg (4.4 lb)

Download Hikvision DS-7216HQHI-K2 DVR Datasheet

Download Hikvision DS-7216HQHI-K2 DVR  guide
