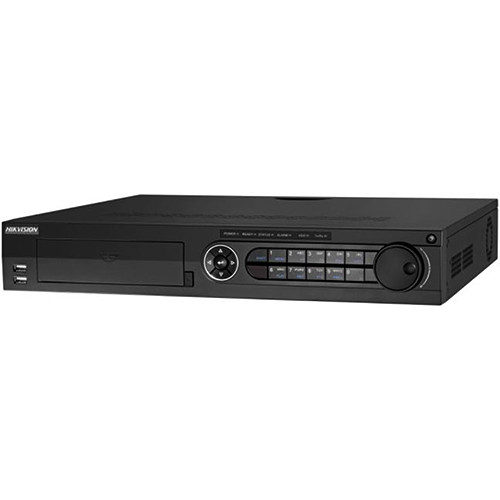

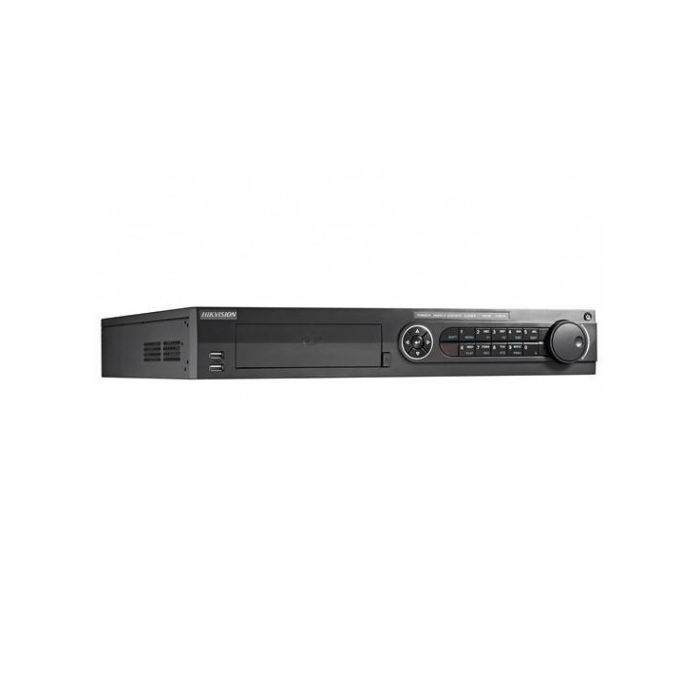

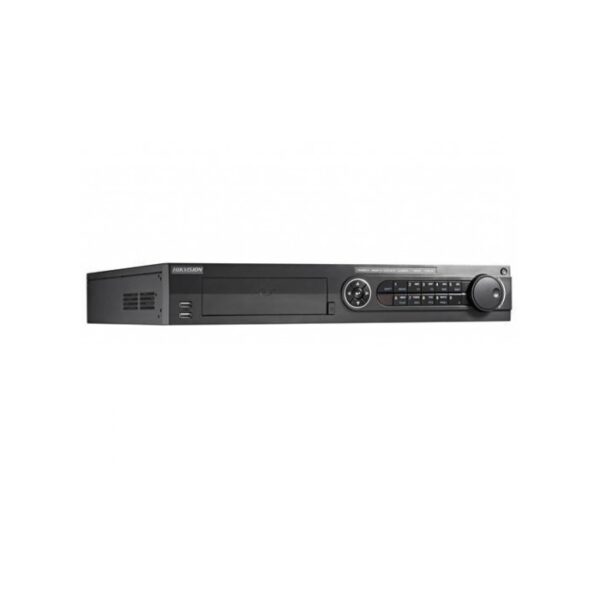

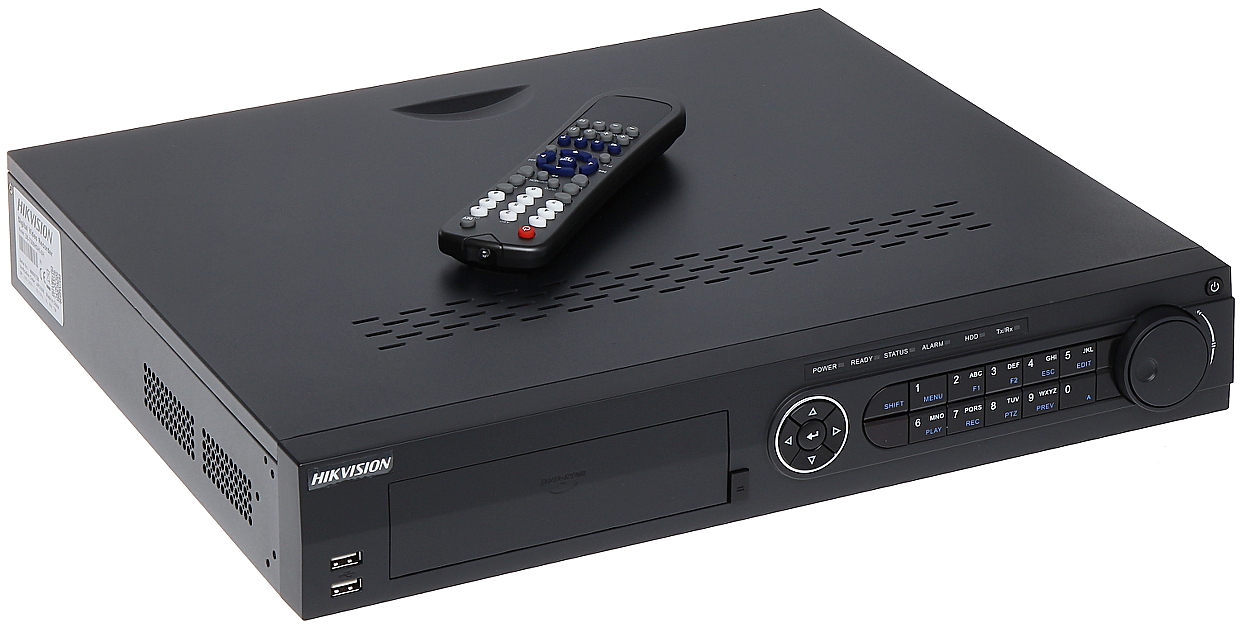

Hikvision DS-7332HQHI-K4

32-ch 1080p 1.5U H.265 DVR

  • 24 channels and 4 HDDs 1.5U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 48 network cameras can be connected
  • Supports POS triggered recording and POS information overlay

৳ 33,000.00

Compare

Product Description

32-ch 1080p 1.5U H.265 DVR

  • 24 channels and 4 HDDs 1.5U DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 48 network cameras can be connected
  • Supports POS triggered recording and POS information overlay

System

Model DS-7324HQHI-K4 DS-7332HQHI-K4
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame rate Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP [email protected]; 1080p lite/720p/WD1/4CIF/VGA/ [email protected] (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/[email protected] For 1080p stream access: 1080p/[email protected]; WD1/4CIF/VGA/[email protected] (P) /30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/[email protected] (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP [email protected]; 1080p lite/720p lite/WD1/4CIF/ VGA/[email protected] (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/[email protected] For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/[email protected] (P) /30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/[email protected] (P)/30fps (N)
Sub-stream: WD1/[email protected]; [email protected] (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps

Video & Audio

IP video input 16-ch (up to 40-ch) 16-ch (up to 48-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 24-ch 32-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 *: The 3 MP signal input is only available for channel 1/2/3/4.
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI1/VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2 output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous playback 16-ch

Network

Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

General

Power supply 100 to 240 VAC
Consumption (without HDD) ≤ 45 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimensions (W × D × H) 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
Weights (without HDD) ≤ 7 kg (15.4 lb)


Download Hikvision DS-7332HQHI-K4 DVR Datasheet

Download Hikvision DS-7332HQHI-K4 DVR  guide
