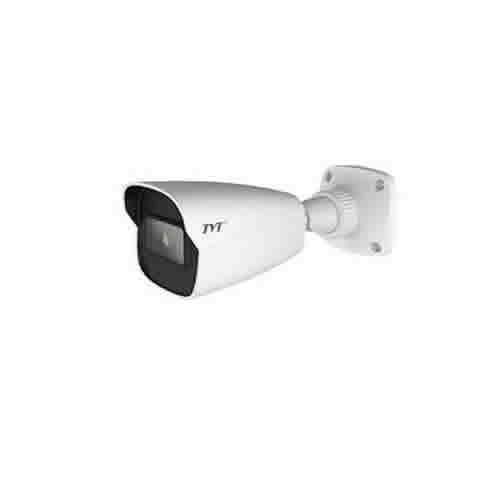

TD-9441E3 4MP Network IR Water-Proof Bullet Camera

4MP Network IR Water-Proof Bullet Camera

4MP ( 2592 × 1520 ) H.265 full real time coding

Max. resolution: 2592 × 1520

ICR auto switch, true day / night

20 ~ 30m IR night view distance

3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding

Hardware reset

Built-in micro SD card slot, up to 128GB

1CH audio input

DC12V/PoE power supply

IP67ingress protection

Support three streams

P2P function optional

Support remote monitoring by smart phones & tablet PCs with iOS and Android OS

Intelligent  analytics: Perimeter Protection,Target Counting,Exception Detection,Face Detection,etc.

৳ 7,500.00

Compare

Product Description

Camera
Image Sensor 1 / 3 “CMOS
Image Size 2592 × 1520
Electronic Shutter 1 / 30 s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illumination 0.005 [email protected],AGC ON; 0 lux with IR
0.0028 [email protected],AGC ON; 0 lux with IR
Lens 2.8 [email protected], horizontal FoV: 100.4°; vertical FoV: 68°; diagonal FoV:108°
3.6 [email protected], horizontal FoV: 80.6°; vertical FoV: 50.6°; diagonal FoV:88°
Focus Fixed
Lens Mount M12
Day & Night ICR
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
H.264 Compression Standard Baseline Profile/Main Profile/High Profile
Resolution 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream 4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps )
Sub Stream 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen NR,etc. adjustable through client software or web browser
ROI Each ROI to be configured separately
Interfaces
Network RJ45
Video Output No
Audio 1CH audio input
Storage Built-in micro SD card slot; up to 128GB
Reset Yes
Alarm No
Intelligent Analytics (Smart Events)
Perimeter Protection Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification)
Target Counting Line crossing human/motor vehicle/non-motor vehicle counting
Exception Detection Scene change, video blur and video color cast detection
Face Detection Face detection and face capture
General Intelligence Crowd density detection, heat map, object abandoned/missing detection*
Functions
Remote Monitoring Web browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection, SD card error, SD card full
General Function Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction
PoE Yes , IEEE802.3af
IR Distance 20 ~ 30 m
Ingress Protection IP67
