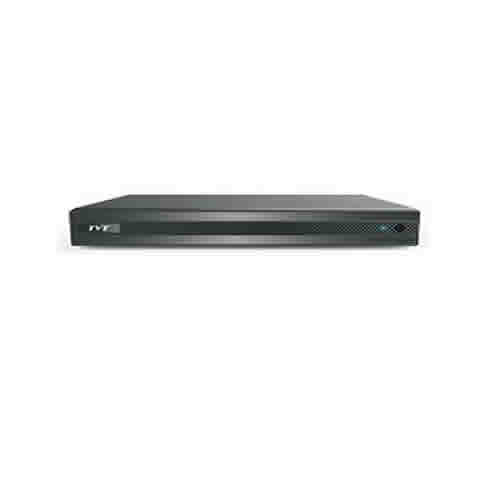

TVT TD-2732TC-C 1080P Hybrid HD DVR

TVT TD-2732TC-C 1080P Hybrid HD DVR

TD-2732TC-C series are 32 CH 1080P high definition DVRs, which adopt the standard H.264 high profile compression format and the most advanced SOC technique to ensure real time recording in each channel and realize outstanding robustness of the system. TD-2732TC-C support 32 CH video input, 4 CH audio input, simultaneous 16 CH playback. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.

৳ 25,500.00

Compare

Product Description

  • 32 CH TVI / CVI / AHD video input
  • 32 CH 1080P / 1080P lite / 720P / WD1 recording
  • Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor
  • Playback : 16 CH simultaneously playback
  • Search: time slice, time, event ( manual, sensor, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuratioN
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile devicE
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • HDMI 1080P output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
Product Model TD-2732TC-C
System Main Processor Chip Cortex A9
Operation System Embedded Linux
Coding Standard H.264 High Profile
Video Local Video Input BNC×32
Input Resolution TVI/CVI/AHD:1080P、720P、WD1 real time
Network Input/Access Bandwidth IPC×4 / 24Mbps (1080P Lite Record Mutual exclusion)
Output HDMI×1:1920×1080/1280×1024/1024×768 VGA×1:1920×1080/1280×1024/1024×768
CVBS BNC×1:CVBS(used as the main or spot output)
Audio Local Audio Input RCA×4
Two-way audio Take up channel one audio input
Local Output RCA×1
Record Resolution 1080P、1080P lite、720P、WD1
Local Record Frame Rate 1080P:12fps(PAL)/15fps(NTSC) 1080P Lite/720P/WD1:25fps(PAL)/30fps(NTSC)
Bit Stream 768Kbps-8Mbps
Mode Manual, timer, motion, sensor
Image Quality 5 Level
IPC Input Resolution 3MP/1080P/960P/720P
IPC Record Frame Rate 25fps(PAL)/30fps(NTSC)
 Playback Playback Channel 16 CH
Network Interface RJ45 10M / 100M / 1000Mbps × 1
Network Protocol TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181
Storage HDD SATA×4
Maximum Capacity of HDD 8T
Backup USB Backup Yes
eSata Backup No
Interface Alarm Input 4
Alarm Output 1
Communication RS485×1, connect to PTZ or keyboard
Remote Optional
USB USB2.0×1 ( front panel ), USB3.0×1 ( rear panel )
Others Computer Case 1.5U
Dimension 440×390×70(W×D×H)
Power Supply
ATX
Power Comsuption ≤ 40W ( without HDD )
Work Environment -10 ~ 50 ℃,10% ~ 90% humidity
