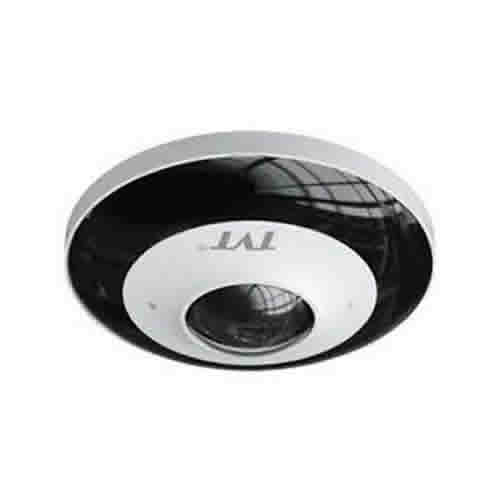

TVT TD-9568E2 6MP Network IR Water-Proof Fisheye Camera
6MP Network IR Water-Proof Fisheye Camera
- 6MP H.265 full real time coding
- Effective pixels: 2160 × 2160
- ICR auto switch, true day / night
- 20 ~ 30m IR night view distance
- 3D DNR, digital WDR, HLC, BLC and ROI coding
- One CVBS output
- 1CH audio input, 1CH audio output, 1CH built-in MIC
- Built-in micro SD card slot, up to 128GB
- Hardware reset
- RS485
- 1CH alarm input; 1CH alarm output
- DC12V/PoE power supply
- Support smart phone, iPad, remote monitoring
- IP67 ingress protection
- Support three streams
Product Description
| Camera | |
| Image Sensor | 1 / 2.9 “6MP progressive scan CMOS |
| Effective Pixels | 2160×2160 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Min. Illumination | 0.068lux@F2.0, AGC ON; 0 lux with IR |
| Lens | 1.07mm @F2.5, horizontal field of view : 180° (wall mounting） 360° (ceiling mounting） |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Digital NR | 3D DNR |
| Slow Shutter | Yes |
| Compression Standard | |
| Video Compression | H.265 / H.264 / MJPEG |
| Encoding Type | VBR (five levels adjustable) / CBR |
| Smart Encoding | Support low bitrate, low delay; support ROI coding &SVC technology; support self-adapative transmission bitrate as the network environment |
| Bit Rate | 128 Kbps ~ 16 Mbps |
| Audio Compression | G711A / U |
| Audio Bit Rate | 8Kbps ~ 48 Kbps |
| Image | |
| Main Stream | ① Fisheye+panorama+3 PTZ 50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440),25fps@(1920 × 1080), 25fps@(960× 540)*3 60Hz: 30fps@(2160 × 2160/1920×1920/1440×1440),30fps@(1920 × 1080), 30fps@(960× 540)*3 ② Fisheye+ 4 PTZ 50Hz: 25fps@(2160 × 2160/1920×1920/1440×1440),25fps@(960× 540)*4 60Hz: 30fps@(2160 × 2160/1920×1920/1440×1440),30fps@(960× 540)*4 |
| Max. Image Size | 2160 * 2160 |
| ROI | Each ROI to be configured separately |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| Interfaces | |
| Network | RJ45 |
| Video Output | CVBS output (BNC × 1) |
| Audio | 1CH audio input; 1CH audio output; 1CH built-in MIC |
| Storage | Built-in micro SD card slot; up to 128GB |
| Hardware Reset | Yes |
| Alarm | 1CH alarm input; 1CH alarm output |
| RS 485 | Yes |
| Functions | |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 11 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, UPnP, HTTP |
| Interface Protocol | ONVIF, GB-T/28181-2011 |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection; Sensor alarm |
| General function | Watermark, IP address filtering, video mask |
| PoE | Yes |
| IR Distance | 20 ~ 30 m |
| Ingress Protection | IP67 |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 12W |
| Operating Environment | -30 °C ~ 50 °C (-22°F~122°F), Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) | Φ 130 × 41 |
| Weight ( net ) | Approx. 0.45KG |
| Installation | Ceiling mounting(wall mounting available with the junction box and bracket) |
